Table of Contents
- Run an Xbox Connection Test and Disconnect Headsets
- Restart Console and Network Hardware
- Confirm Wi-Fi Password
- Check Your Router’s Broadcast Settings
- Update Your Router’s Firmware
- Adjust Wireless Channel and Channel Width
- Improve Wi-Fi Signal Strength
- Check for MAC Filtering
- Change Your DNS Settings
- Switch to a Wired Ethernet Connection
- Test Connection in Another Location
- Contact Xbox Support

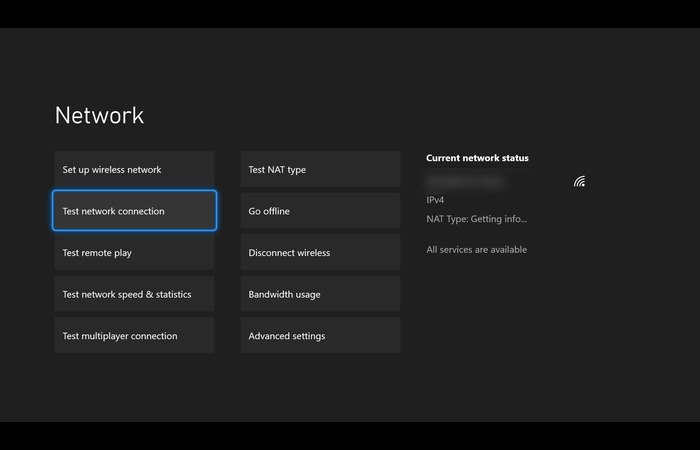

1. Run an Xbox Connection Test and Disconnect Headsets
First, ensure your Xbox can detect and connect to your Wi-Fi network. To do this, perform a network connection test:
- Press the Xbox button on your controller.
- Go to ‘Settings’ > ‘General’ > ‘Network settings.’
- Select ‘Test network connection.’
If the test fails, disconnect any third-party headsets connected to your Xbox, as they can sometimes interfere with Wi-Fi connections.
2. Restart Console and Network Hardware
Power cycling your console and network hardware can help resolve Wi-Fi connectivity issues:
- Please turn off your Xbox console and unplug it.
- Unplug your modem and router.
- Wait for 30 seconds, then plug in your modem and router.
- Wait for the modem and router to power up fully.
- Plug in your Xbox console and turn it on.

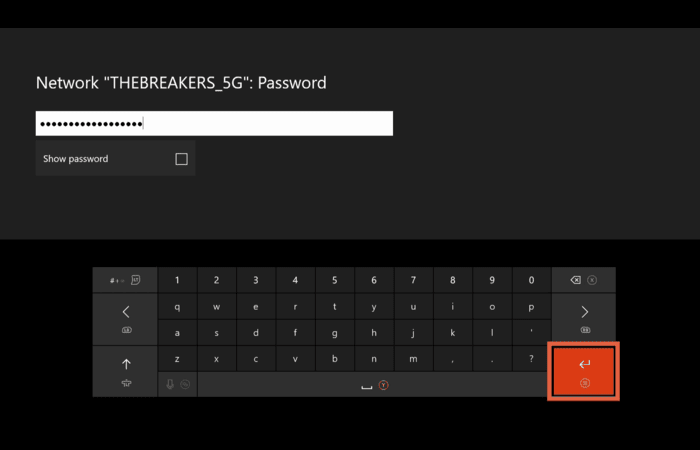

3. Confirm Wi-Fi Password
Make sure you’re using the correct Wi-Fi password. To re-enter the password on your Xbox:
- Press the Xbox button on your controller.
- Go to ‘Settings’ > ‘General’ > ‘Network settings.’
- Select ‘Set up a wireless network.’
- Choose your Wi-Fi network and enter the correct password.
4. Check Your Router’s Broadcast Settings
Ensure your router is broadcasting the correct SSID (network name) and set to a compatible channel. Access your router’s settings (refer to the router’s manual for instructions) and verify the following:
- SSID is not hidden.
- Channel is set to a compatible option (1, 6, or 11 for 2.4GHz networks).
- Channel width is set to 20MHz for 2.4GHz networks.
5. Update Your Router’s Firmware
Outdated router firmware can cause connectivity issues. To update your router’s firmware:
- Log in to your router’s admin panel (refer to the router’s manual for instructions).
- Find the firmware update option (usually under ‘System’ or ‘Administration’).
- Follow the on-screen instructions to update the firmware.

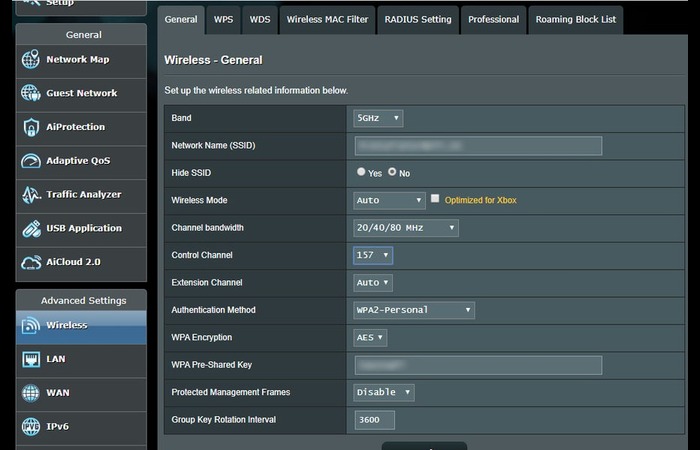

6. Adjust Wireless Channel and Channel Width
Adjusting the wireless channel and channel width on your router can improve Wi-Fi connectivity:
- Log in to your router’s admin panel.
- Go to the Wi-Fi settings.
- Change the channel to 1, 6, or 11 for 2.4GHz networks.
- Set the channel width to 20MHz for 2.4GHz networks.
- Save the settings and restart your router.
7. Improve Wi-Fi Signal Strength
Low Wi-Fi signal strength can cause connectivity issues. To improve signal strength:
- Move your Xbox closer to the router.
- Remove any obstructions between your Xbox and router.
- Use a Wi-Fi extender or mesh network system.
- Adjust your router’s antennas (if applicable).

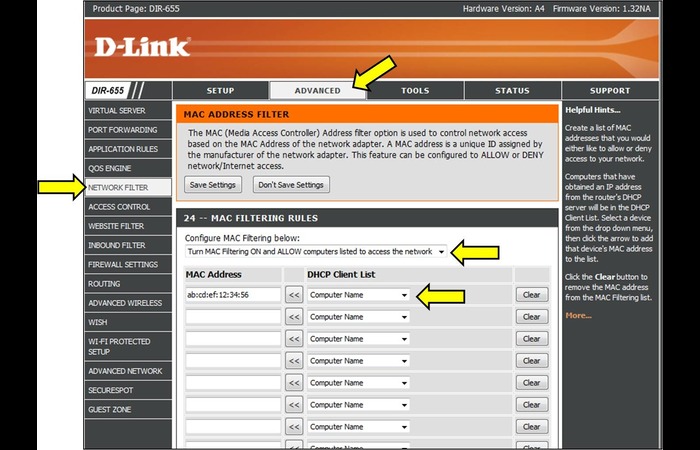

8. Check for MAC Filtering
MAC filtering can prevent your Xbox from connecting to Wi-Fi. To check and add your Xbox’s MAC address:
- Log in to your router’s admin panel.
- Find the MAC filtering option (usually under ‘Security’ or ‘Wireless’).
- Add your Xbox’s MAC address to the allowed list (find it in ‘Settings’ > ‘General’ > ‘Network settings> ‘Advanced settings’ on your Xbox).
- Save the settings and restart your router.
9. Change Your DNS Settings
Changing your Xbox’s DNS settings can improve Wi-Fi connectivity:
- Press the Xbox button on your controller.
- Go to ‘Settings’ > ‘General’ > ‘Network settings.’
- Select ‘Advanced settings’ > ‘DNS settings’ > ‘Manual.’
- Enter a public DNS server’s addresses (e.g., Google’s DNS: 8.8.8.8 and 8.8.4.4).
- Save the settings and restart your Xbox.

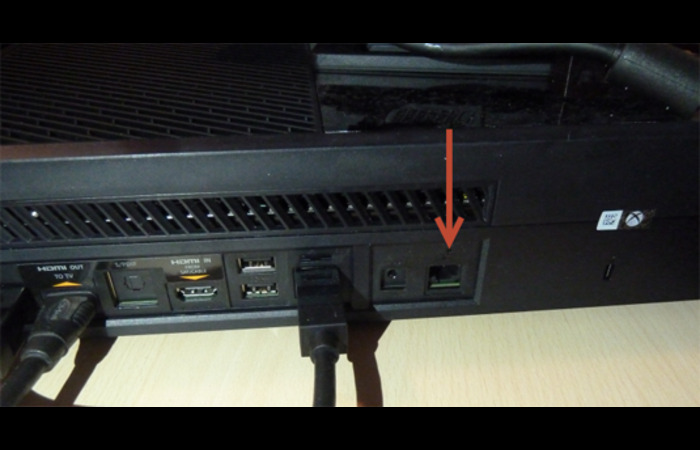

10. Switch to a Wired Ethernet Connection
If Wi-Fi issues persist, try using a wired Ethernet connection:
- Connect an Ethernet cable between your Xbox and router.
- Go to ‘Settings’ > ‘General’ > ‘Network settings’ on your Xbox.
- Select ‘Set up a wired connection.’
- Follow the on-screen instructions to configure the connection.
11. Test Connection in Another Location
Testing your Xbox in a different location can help identify the cause of the issue:
- Bring your Xbox to a friend’s house or another place with Wi-Fi.
- Connect your Xbox to the Wi-Fi network.
- If the issue persists, the problem might be with your Xbox.
12. Contact Xbox Support
If all else fails, contact Xbox Support for assistance:
- Visit the <ahref=”https://support.xbox.com/”>Xbox Support website.
- Select your issue from the available options.
- Follow the suggested troubleshooting steps or contact support via chat or phone.
Conclusion
In conclusion, there are multiple reasons why your Xbox won’t connect to Wi-Fi with the correct password. You can troubleshoot and resolve the issue by following the steps outlined in this guide. Remember to search for the relevant images on Google Images to visualize each solution, making it easier to follow the steps. Good luck, and we hope you can get back to enjoying your Xbox soon!
