Concrete is a fundamental material in construction, and its properties directly influence the durability and strength of structures. One critical aspect of concrete quality is its air content, which can affect both the workability and long-term performance of the mix.
To accurately measure and control the air content in concrete, engineers and contractors use a device known as the concrete air meter. This article provides an extensive overview of the concrete air meter, including its purpose, types, operation, calibration, and importance in construction.
Purpose of Concrete Air Meter
The primary function of a concrete air meter is to measure the air content in a concrete mix. The air content is an essential parameter because:
- Workability: Air entrainment in concrete increases its workability, making it easier to mix, transport, and place. This is particularly beneficial in cold weather conditions where the mix tends to be stiff and less workable.
- Durability: Proper air content can enhance the durability of concrete by providing a buffer against freeze-thaw cycles. Air-entrained concrete has microscopic air bubbles that act as expansion chambers, reducing the likelihood of cracking and spalling due to freeze-thaw cycles.
- Strength: Although air-entrained concrete can have slightly reduced compressive strength compared to non-air-entrained concrete, it significantly improves the concrete’s resistance to freezing and thawing, leading to longer-lasting structures.
Types of Concrete Air Meters
There are primarily two types of air meters used in the industry: the pressure meter and the volumetric meter.
1. Pressure Air Meter

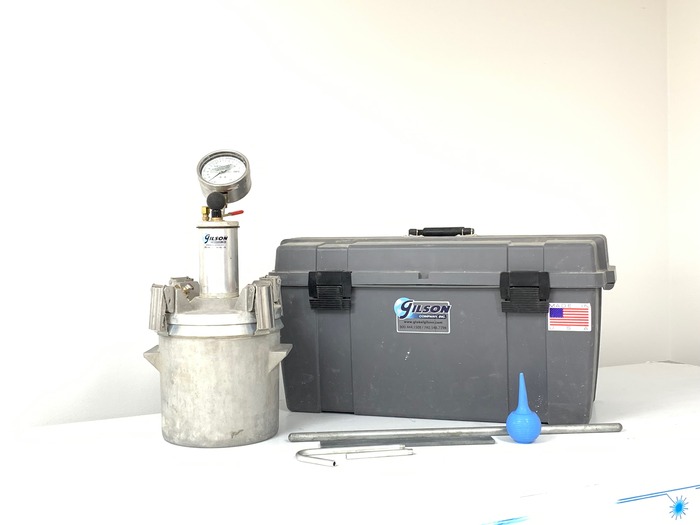

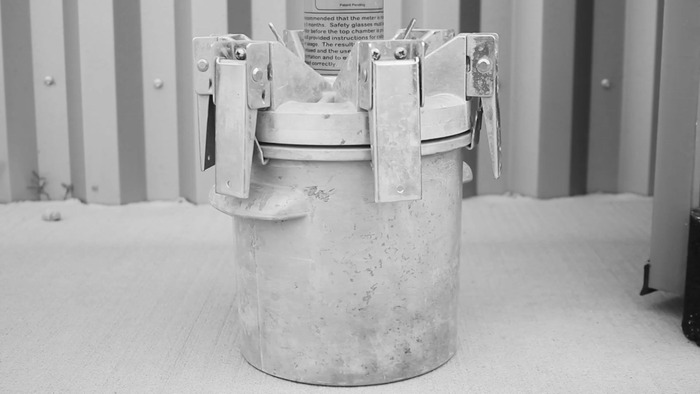

The pressure air meter, also known as the “Type A air meter,” operates based on the principle of displacement and pressure. It typically consists of a metal or plastic container with a gauge that measures the pressure exerted by the air bubbles in the concrete. Here’s how it works:
- Sample Preparation: A sample of freshly mixed concrete is poured into the air meter’s container, and the surface is leveled.
- Pressure Application: The lid of the air meter is sealed, and air is introduced into the container until a specific pressure is reached.
- Measurement: The gauge reading indicates the amount of air present in the mix. The higher the pressure required to reach the set point, the higher the air content in the concrete.
2. Volumetric Air Meter
The volumetric air meter, or “Type B air meter,” measures the air content by calculating the volume of air in the concrete mix. This meter is typically simpler in design compared to the pressure meter and operates as follows:
- Sample Preparation: A sample of concrete is placed in a graduated container with a known volume.
- Volume Measurement: After the sample is settled, the volume of air is measured using a scale or graduated markings on the container.
- Calculation: The air content is calculated based on the volume of air compared to the total volume of the concrete sample.
Operation of Concrete Air Meters
Regardless of the type, operating a concrete air meter involves several key steps to ensure accurate and reliable measurements:
1. Sample Collection
The concrete sample should be collected according to the specifications outlined by the relevant standards (e.g., ASTM C231 for pressure meters or ASTM C173 for volumetric meters). The sample must be representative of the batch and should be tested as soon as possible to ensure accurate results.
2. Sample Preparation
For pressure air meters, the sample is poured into the container and tamped to remove large air pockets. For volumetric meters, the sample is carefully placed into the graduated container, ensuring no air bubbles are trapped.
3. Measurement
For the pressure air meter, the container is sealed, and air is introduced until the gauge reads the required pressure.
The air content is then calculated based on the gauge reading. For the volumetric meter, the air content is determined by measuring the volume of air in the graduated container and comparing it to the total volume of the sample.
Calibration and Maintenance
Proper calibration and maintenance are crucial for ensuring the accuracy of concrete air meters. Here’s an overview of the process:
1. Calibration
Calibration ensures that the air meter provides accurate readings. This involves:
- Using Calibration Standards: Calibration standards or reference materials with known air content are used to verify the accuracy of the meter.
- Adjusting the Meter: If discrepancies are found, adjustments are made to the meter to align with the reference standards.
- Regular Checks: Calibration should be performed regularly, as specified by the manufacturer or relevant standards, to maintain accuracy.
2. Maintenance
Routine maintenance is essential for the longevity and reliability of the air meter:
- Cleaning: After each use, the meter should be cleaned to remove any residue or debris that could affect its operation.
- Inspection: Regular inspections should be carried out to check for any damage or wear and tear. Any faulty components should be repaired or replaced.
- Storage: The air meter should be stored in a clean, dry environment to prevent damage and ensure longevity.
Importance in Construction
The accurate measurement of air content in concrete is vital for several reasons:
1. Quality Control
Maintaining the correct air content ensures that the concrete mix meets the required specifications and performs as intended. This is crucial for quality control and for meeting the standards set by codes and regulations.
2. Performance and Longevity
Properly air-entrained concrete performs better in terms of freeze-thaw resistance and overall durability. This can lead to longer-lasting structures and reduced maintenance costs over time.
3. Cost Efficiency
Accurate air measurement helps in optimizing the use of materials, leading to cost savings. Over- or under-airing the concrete can result in wastage of materials or reduced performance, impacting the overall project cost.
Conclusion
The concrete air meter is an essential tool in the construction industry, enabling professionals to measure and control the air content in concrete mixes accurately. By understanding the types of air meters, their operation, and the importance of proper calibration and maintenance, engineers and contractors can ensure the quality and durability of their concrete structures.
As technology advances, future developments may further enhance the accuracy and efficiency of air meters, continuing to play a crucial role in modern construction practices.
